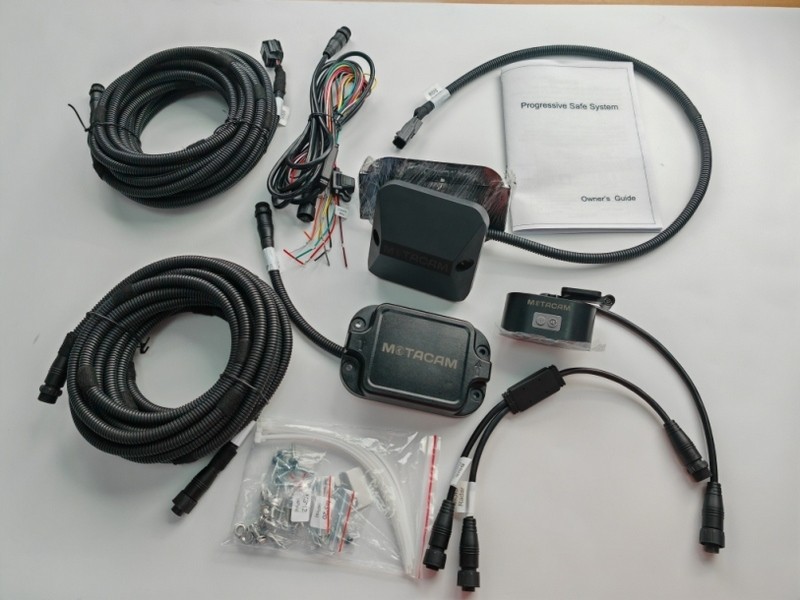

DVS PSS 2024 Radar Kit

Specification

Item – Value

Type – Moving off Information System (MOIS) & Blind Spot Information System (BSIS)

Rated working voltage(V)- 12V /24V

Working current – <200mA

Operating temperature range(℃)- -40 ~ +80℃

Storage temperature range(℃)- -40 ~ +85℃

Working frequency(GHz) – 76-77GHz

Transmit power(dBm)- 12

Modulation mode- FMCW

Antenna form – 2TX,4RX

Traceable target number MAX – 31

Horizontal angle(°)- 110 -150@ -3dB

Vertical angle(°)- 20 @ -3dB

Angle accuracy(°)- ±0.5 @ 40°

Angular resolution(°)- 15

Speed Range(km/h)- -300 ~ +300

Tag Waterproof and dustproof – IP67



Other attributes

Type      Blind Spot Information System, R151 BSIS, Moving off Information System, R159 MOIS

Warranty             12months

Place of Origin   Fujian, China

Power   ≤4w

Voltage 9-36V

Brand Name       Unique

Rated working voltage(V)             12V /24V

Working current                <200mA

Operating temperature  -40 ~ +80℃

Storage temperature       -40 ~ +85℃

Working frequency(GHz)               76-77

Transmit power(dBm)    12

Modulation mode            FMCW

Antenna form    2TX,4RX

Traceable target numberMAX     31

Detectability(m)                50

£699.00£975.00

SKU: MOTDVS7/2024 Categories: ,

The Direct Vision Standard (DVS) is new safety legislation from the TFL Safety Lorry Scheme, created to improve the safety of all road users, including pedestrians, cyclists and motorcyclists.

From 26th October 2020, according to the TFL Safer Lorry Scheme, HGVs over 12 tonnes gross vehicle weight will need a Safety Permit to enter Greater London.

Currently, vehicles with zero star rating require a standard DVS kit to fully comply.

(*Zero to 2 Star rating HGVs (vehicles with the poorest direct vision) will need a Safe System PSS 2024 kit fitted by October 2024 to apply)

3 to 5 Star rated vehicles can apply without the need to provide further evidence.

The DVS safety standards came into effect on 26th October 2020 (although new updates for enforcement and charges have been made to be implemented by 24th

Zero Star HGVs without a Safe System fitted will be banned.

HGVS WITHOUT PERMIT ENTERING GREATER LONDON WILL BE FINED UP TO £550 PER DAY.

DVS PSS 2024 radar kit manual DVS PSS 2024 radar kit brochure

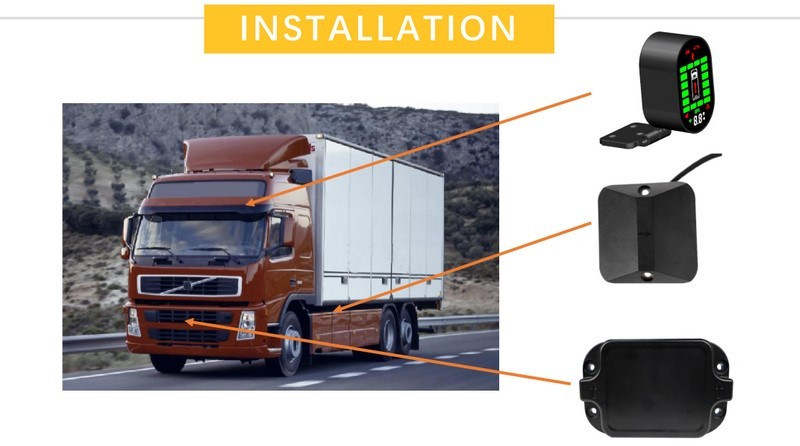

Supply/Install

Supply Only, Supply and Install
