Summary of Progressive Safe System
Improving indirect vision
Camera Monitoring Systems (CMS) guidance will be updated to allow use of both systems. This will give the driver a wider field of vision and reduce the cognitive workload.
CMS fitted on vehicles must eliminate any remaining blind spots. This provides a visual alert of an approaching vulnerable road user and prevents collisions in the blind spot area.
Sensors must ensure full coverage down the nearside of rigid vehicles to detect vulnerable road users. They must not activate in relation to roadside furniture or stationary vehicles. This aims to prevent left turn collisions. For articulated trailers, sensors must be fitted to the front tractor unit but are recommended for the trailer where possible.
Moving Off Information Systems (MOIS) sensors must be fitted to the front of a vehicle to prevent collisions at the frontal blind spot zone when a vehicle moves off from rest.
Warning vulnerable road users of intended manoeuvres
Audio warnings must be fitted to all vehicles, including those with left-hand drive to ensure all vehicles have the ability to warn of an intended manoeuvre.
Warning signage requirements remain unchanged.
Minimising physical impact of a hazard
Sideguard requirements remain unchanged

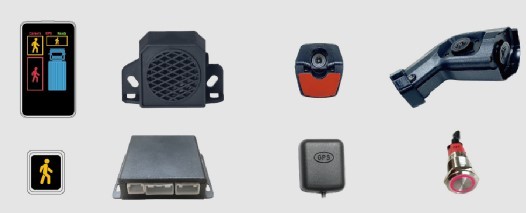

The specific advantages of the AI camera product are as follows:
- Image recognition:
- The AI camera does not need infrared lights, and can recognize people without street lights
- Accurate and no-delay recognition when the vehicle speed is >30km
- Display: A-pillar pedestrian LED, rich and detailed display of X-WATCH
- Sound in the Vehicle: pedestrian left/pedestrian front
- Sound outside the Vehicle: Caution! vehicle turning left
Caution! vehicle turning right
Warning! vehicle reversing
- High precision new GPS with inertial navigation(Ordinary GPS sends one data every 1 second, and the one with inertial navigation sends 10 times per second. Accurately knows the vehicle speed at low speeds, even in tunnels or basements).
- Camera shell design: The integrated design of the left camera, equipped with a mounting bracket, solves the problem that the vehicle body protrudes from the cab and blocks the camera’s sight (Bracket is optional and the length of the bracket can be changed by customization)
- Installation software calibration: We have developed a mobile phone APP to set and program the AI camera. If the customer has a batch of vehicles to install, the models of the same model of vehicles are the same, and the installation location is the same, our mobile APP calibration support only needs to calibrate one vehicle, and other vehicles directly copy the calibration parameters without re-calibration. This function can improve the efficiency of installation and calibration.
- Systematic design, installation saves 3 times of time compared with peers
- System self-test function: Including camera, GPS, etc.
- Extended function: Control MDVR, Monitor
